Compressor Air Filter Pressure Regulator Trap Pneumatic Oil Water Separator Pump Manual Drainage Supply AC2010-02 SMC Type

Compressor Air Filter Pressure Regulator Trap Pneumatic Oil Water Separator Pump Manual Drainage Supply AC2010-02 SMC Type

Specifications:

Hign-concerned Chemical: None

Type: Filter

Certification: CE

Model Number: AC2010-02

Used: Compressor Air Filter

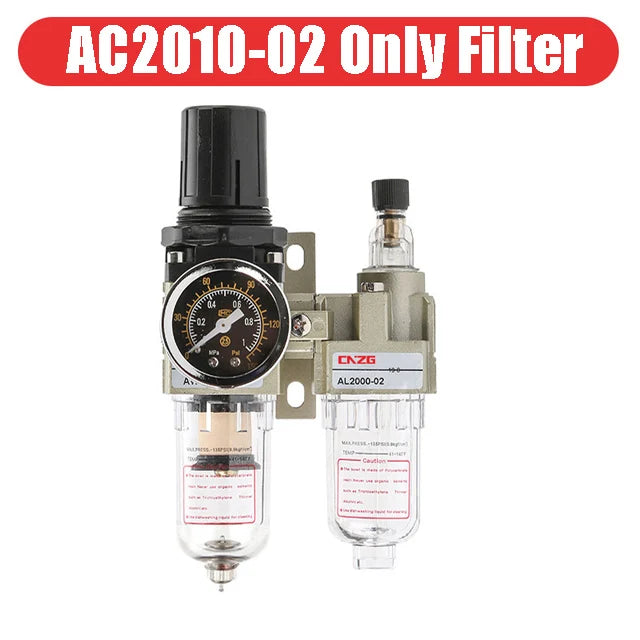

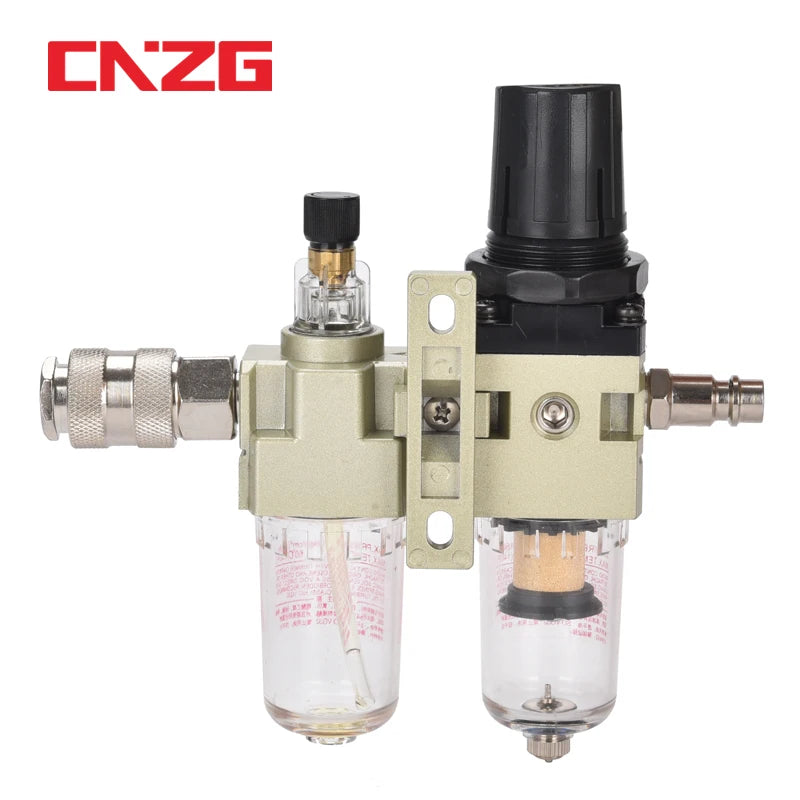

Product name: Pneumatic Air Filter Regulator

Fluid: Air

Model: Quick connector style: Japan style

Air Inlet:1/4" BSP Male

Model: Quick connector style: European style

Air Inlet:1/4" NPT Male

Filter+4mm Fitting: For Pipe4*2.5mm

Filter+6mm Fitting: For Pipe6*4mm

Filter+8mm Fitting: For Pipe8*5mm

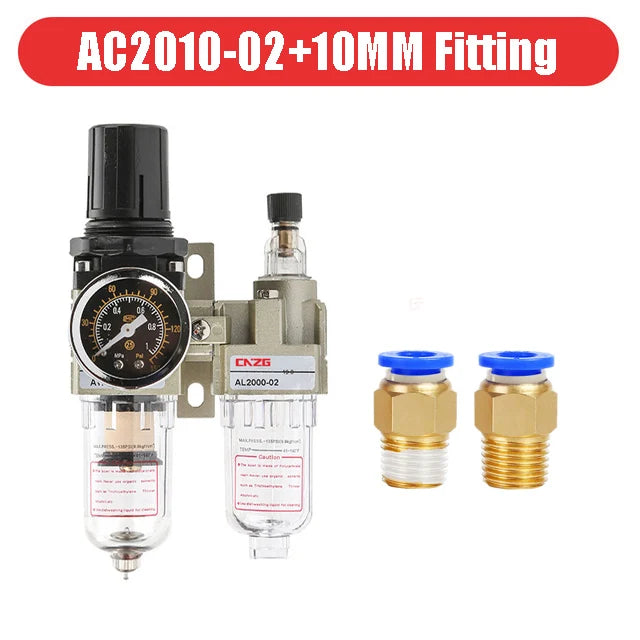

Filter+10mm Fitting: For Pipe10*6.5mm

Filter+12mm Fitting: For Pipe12*8mm

Filter+14mm Fitting: For Pipe14*10mm

Filter+16mm Fitting: For Pipe16*12mm

Max operating pressure: 1.0Mpa(10.2kgf/ cm²)

Ambient & fluid temperature: 5-6°C

Recommended lubrication: Turbine No.1 oil (ISO VG32)

Dimension: 16x16.5cm

Note: Clear oil may be left in the cup. This is the test oil. Every new filter has been tested, so don't worry.

Package list:

1 x Pneumatic Air Filter Regulator

Note:
1. Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. Thank you!
2. Due to manual measurement, Please allow a 1-2cm measuring deviation.
