    5-100 Meters Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wire Coil 3.0mm Fiber Wire Floor Hotline Thickening

    €3,00 EUR
     par
    In stock!
    Color

    Description du produit

    5-100 Meters Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wire Coil 3.0mm Fiber Wire Floor Hotline Thickening

    Description:

    Conductor resistance: 33±10% Ω/m

    Infrared wavelength: 8UM-18UM

    Colors: Red

    Diameter: 3±0.1 MM

    The product can withstand max power: 25W/M

    Leakage current: 0.05mA/m

    Heating conductor: 12K

    Heating temperature: based on the using length

    Max enduring temperature: 200 degrees

    Insulating material: Silicone rubber

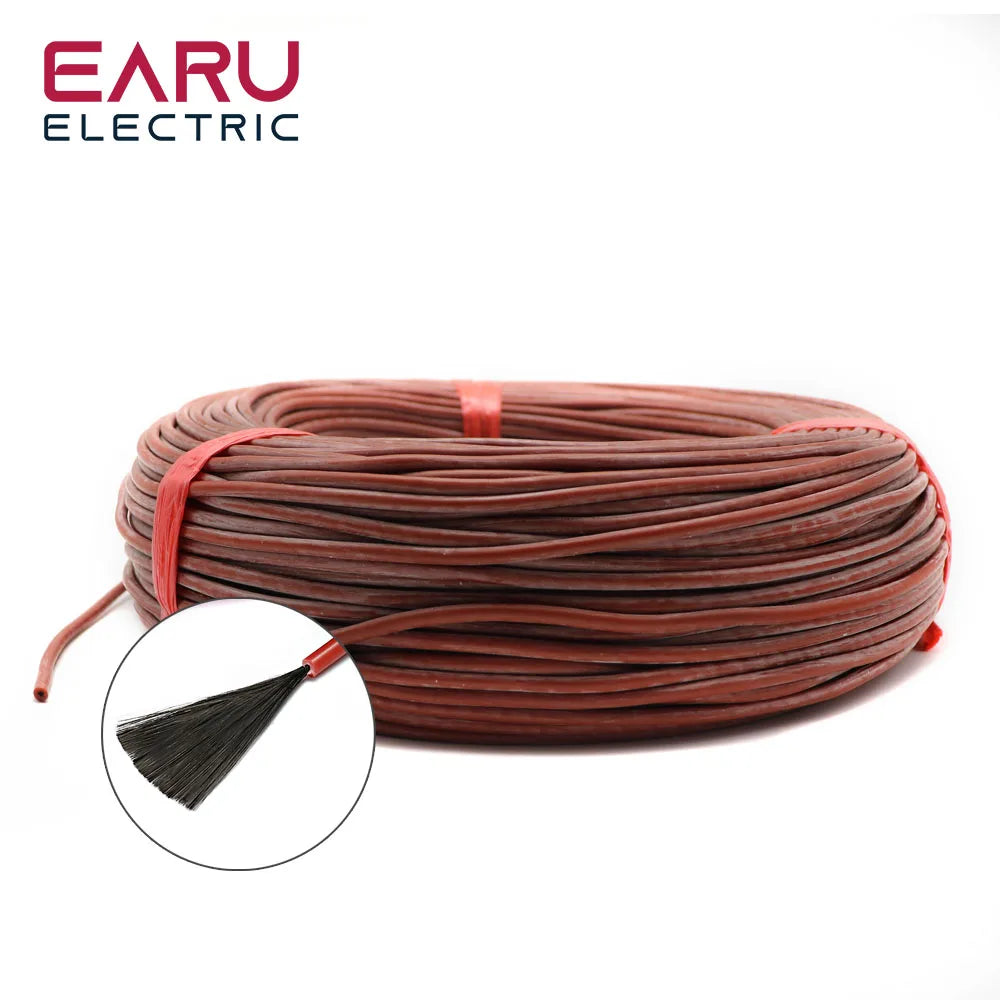

    Product Name: Carbon fiber heating wire

     What is the power of the cable? And what is the heating temperature?

     1. The power of the cable is based on the length that you use, you can calculate the power according to the above examples.

    Power = 5W/m, the temperature is about 30~40C degrees;

    Power = 10W/m, the temperature is about 40~50C degrees;

    Power = 15W/m, the temperature is about 50~60C degrees;

    Power = 20W/m, the temperature is about 60~70C degrees;

    Power = 25W/m, the temperature is about 70~90C degrees.

    Please notice that this is for your reference, not exactly right because of different test conditions.

    How to calculate power?

    220V*220V÷(15meters*33Ω)=100W

    100w/15m=6.66w/m

    For example, using15m 12K carbon fiber cable on 220V, the power is:

    220V*220V÷(10meters*33Ω)=150W

    150w/10m=15w/m

    For example, using 10m 12K carbon fiber cable on 220V, the power is:

    12K=33ohm/meter Voltage*Voltage÷resistance=electric power

    Specifications:

    Brand Name: EARU

    Core size: 12K

    Resistance: 33 Ohm/m

    Outer jacket: Silicone rubber

    Voltage: 7~300 V

    Model Number: AG-12K

    Power: 150w/m2

    Certification: CE

    Type: Floor Heating Parts

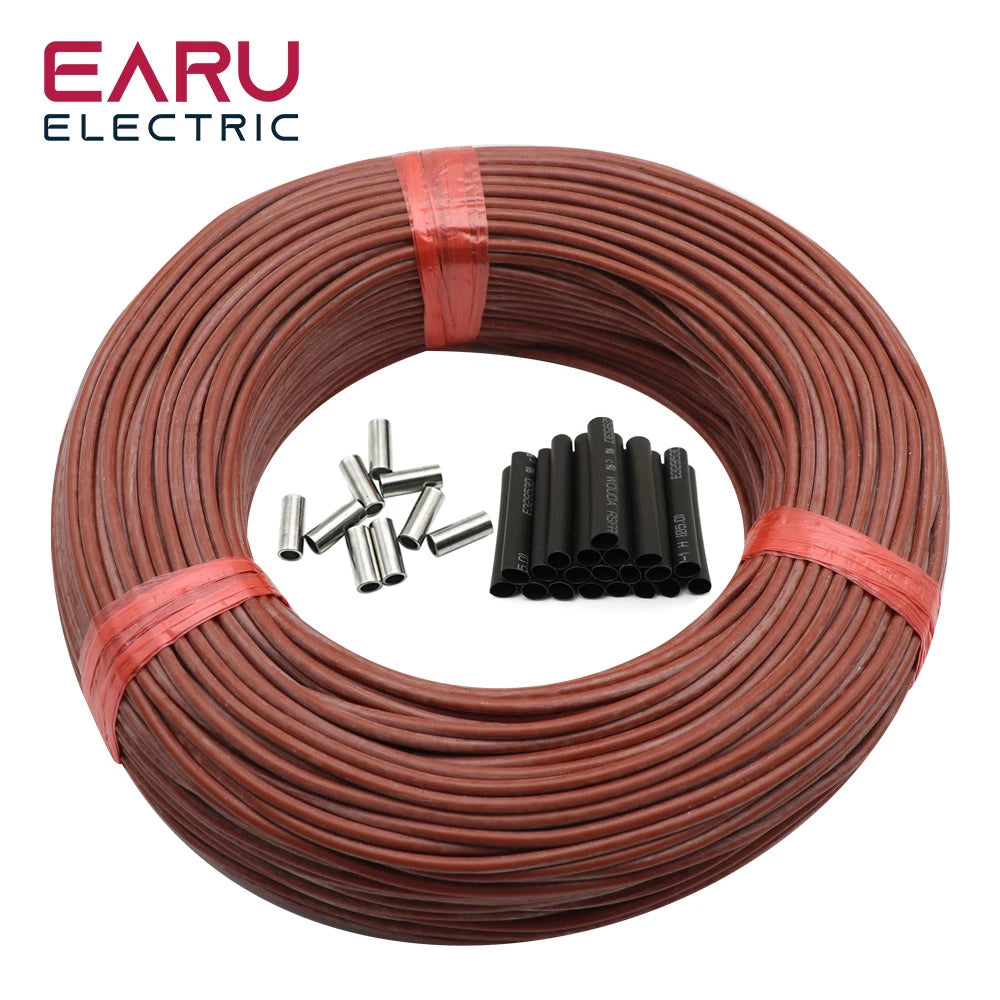

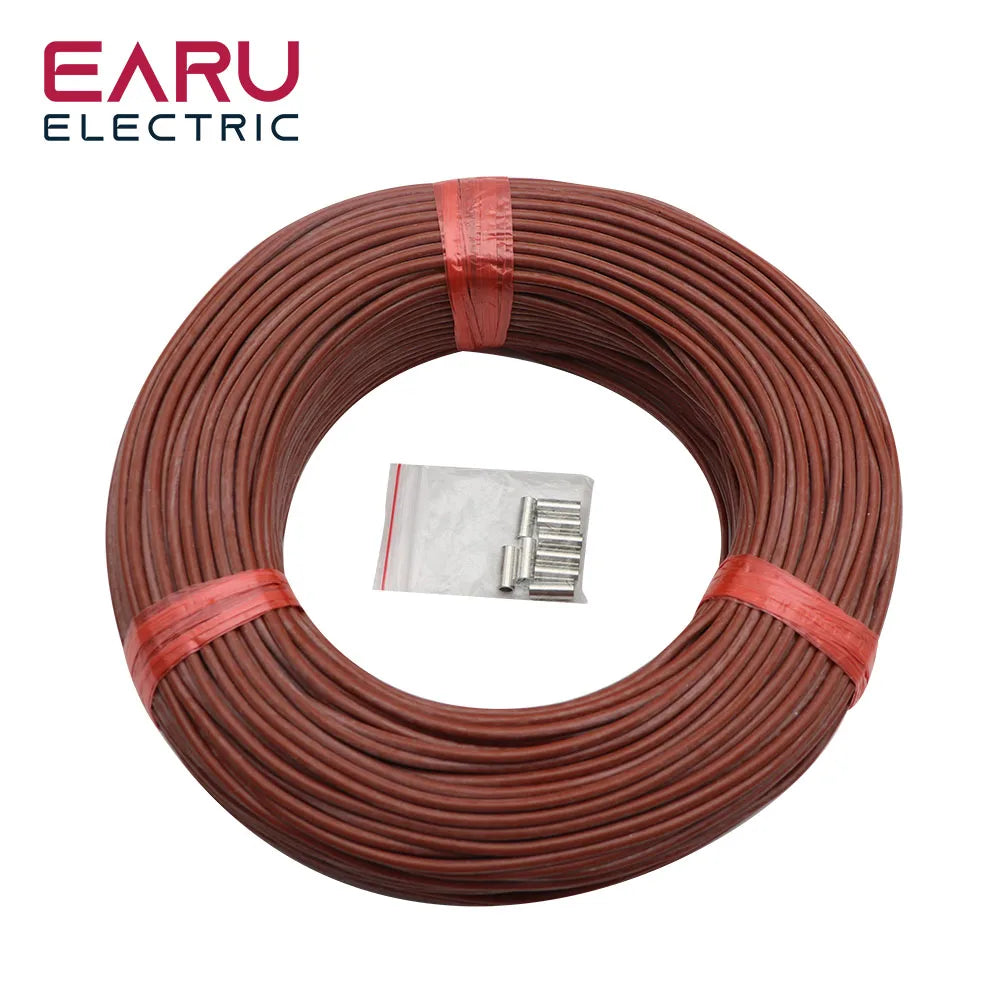

    Package list:

    Buy 10m = 10m cable + 2 pcs copper tube + 2 pcs sleeves

    Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves

    Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves

    Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves

    Buy 40m = 40m cable + 8 pcs copper tube + 8 pcs sleeves

    Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves

    Buy 60m = 60m cable + 12 pcs copper tube + 12 pcs sleeves

    Buy 70m = 70m cable + 14 pcs copper tube + 14 pcs sleeves

    Buy 80m = 80m cable + 16 pcs copper tube + 16 pcs sleeves

    Buy 90m = 90m cable + 18 pcs copper tube + 18 pcs sleeves

    Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves

    Note:
    1. Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. Thank you!
    2. Due to manual measurement, Please allow a 1-2cm measuring deviation.
