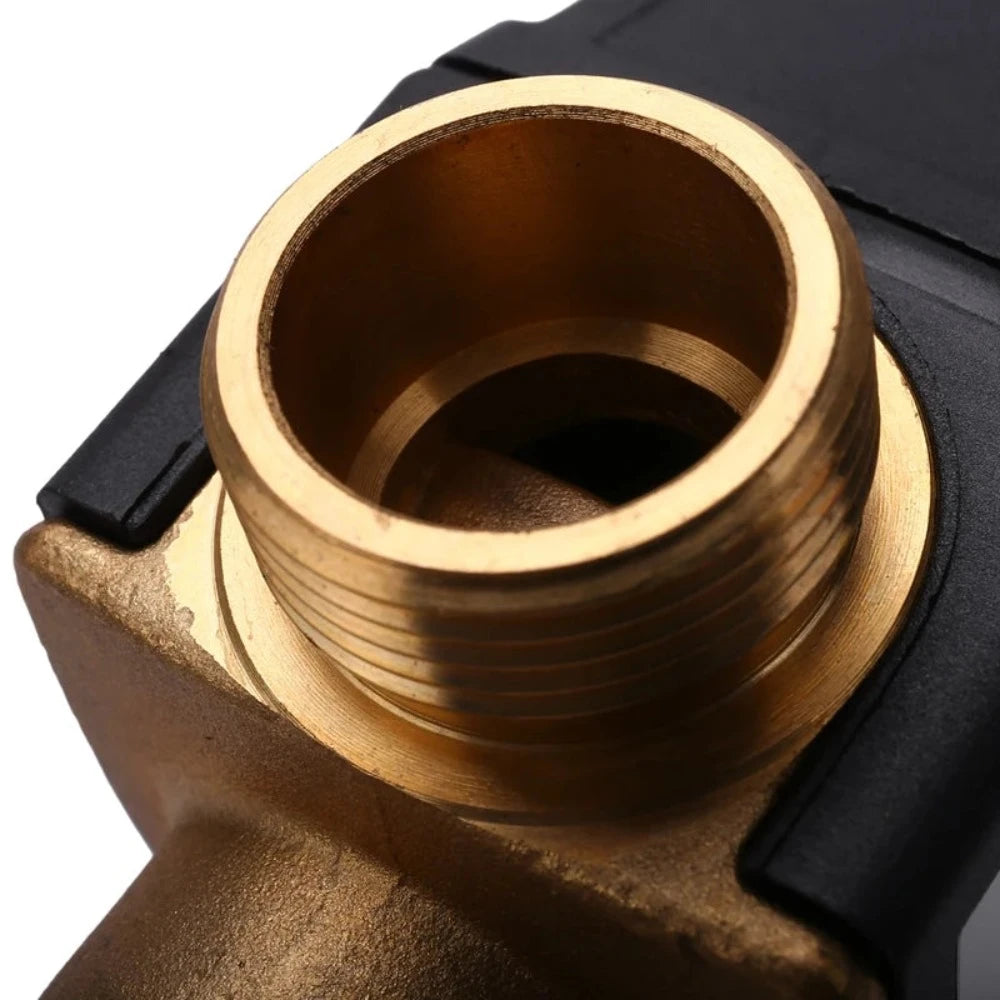

3 Way Mixing valve 3 Way Thermostatic Mixing Valve External Thread Brass for Solar Water Heater

3 Way Mixing valve 3 Way Thermostatic Mixing Valve External Thread Brass for Solar Water Heater

Description:

Thermostatic mixing valve with high flow and good performance, suitable for domestic hot water, with or without HWC(hot water circulation)small floor heating circuit.

The built-in temperature control device provides the safety function of anti-scald for the family hot water system.

It is suitable for household hot water devices equipped or floor heating,  to meet the requirements of constant temperature range and flow.
No matter how the temperature and water pressure change, it can ensure stable yielding water.

The temperature range is 35 to 60 degrees, in case of cold water failure, the safety device will automatically shut off the supply of hot water to prevent scald.

Specifications:

Working pressure: 1.6(MPa)

Cold water temperature: 0-29°C

Hot water temperature: 40-90°C

Outlet flow rate: 1-10 m3/h

Applicable medium: Water

Temperature range: 35-60°C

Model: DN25/DN20

Model Number: Thermostatic Mixing Valve

Pressure: High Pressure

Power: Hydraulic

Media: Water

Color: Black+gold

Material: Brass+plastic

Package list:

1 x Thermostatic mixing valve

Notes:
1. Please allow 1-3mm differences due to manual measurement, thank you for your understanding!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
