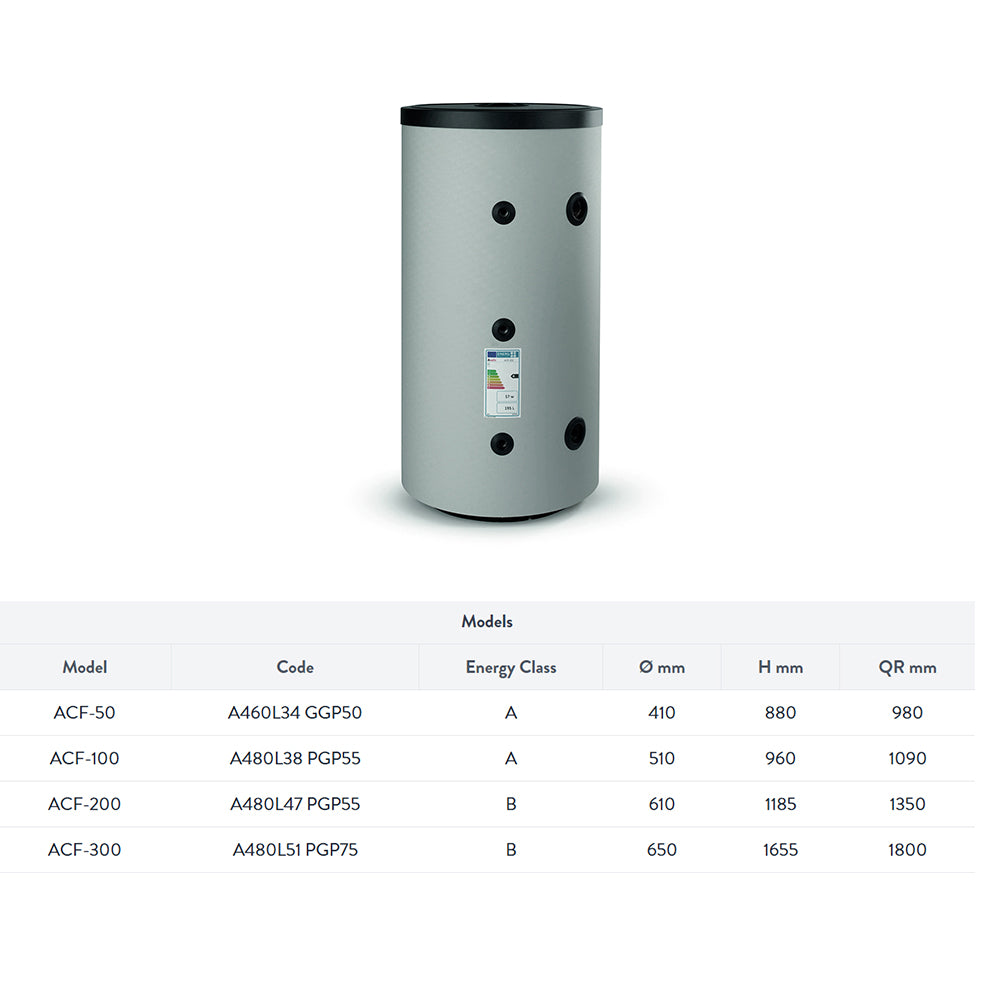

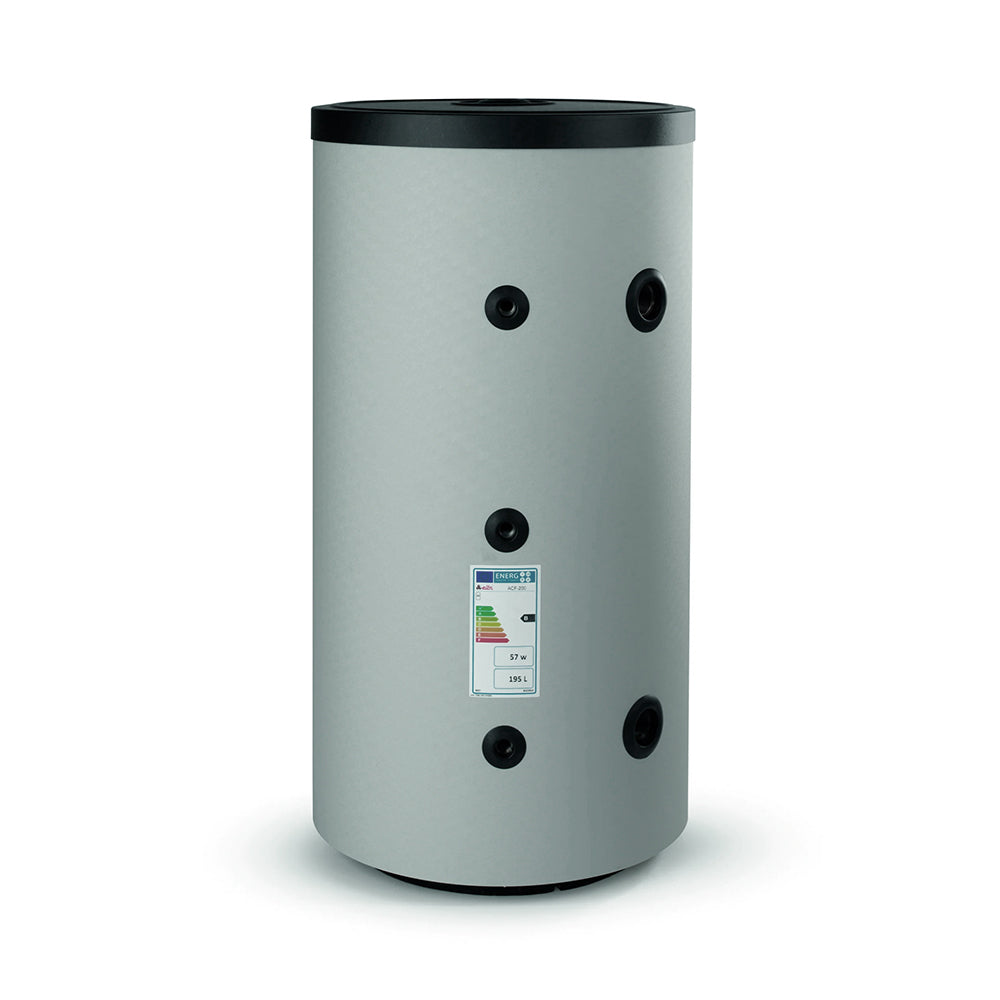

Buffer tank

Description:
Vertical ACF thermal flywheels are the ideal solution for air conditioning and heating systems, designed to optimise thermal inertia and increase the volume of chilled or heated water. These accumulators act as a thermal flywheel, improving the energy efficiency of systems. Available with an embossed aluminium finishing on request.

Features:
Hot water storage tank
For chilled water
Not for drinking water
For air conditioning systems
For heating systems
Suitable for heating pump

Data:
MAX TEMPERATURE-10°C / +95°C
10 BarMAX PRESSURE(mod. 50 - 1000)
6 BarMAX PRESSURE(mod. 1500 - 5000)

Regulations:
Directive 2014/68/EU – ART. 4.3, with exemption from CE marking.
EN 12897:2020 standard.
Designed and built in accordance with the requirements of 2009/125/EC and Regulation 814/2013 (EU).
Labeling in accordance with the requirements of 2017/1369/EU and Delegated Regulation 812/2013 (EU).

Installation:
Use as a thermal flywheel in indoor installations of air conditioning and heating systems to optimise the thermal inertia and increase the volume of chilled/heated water.

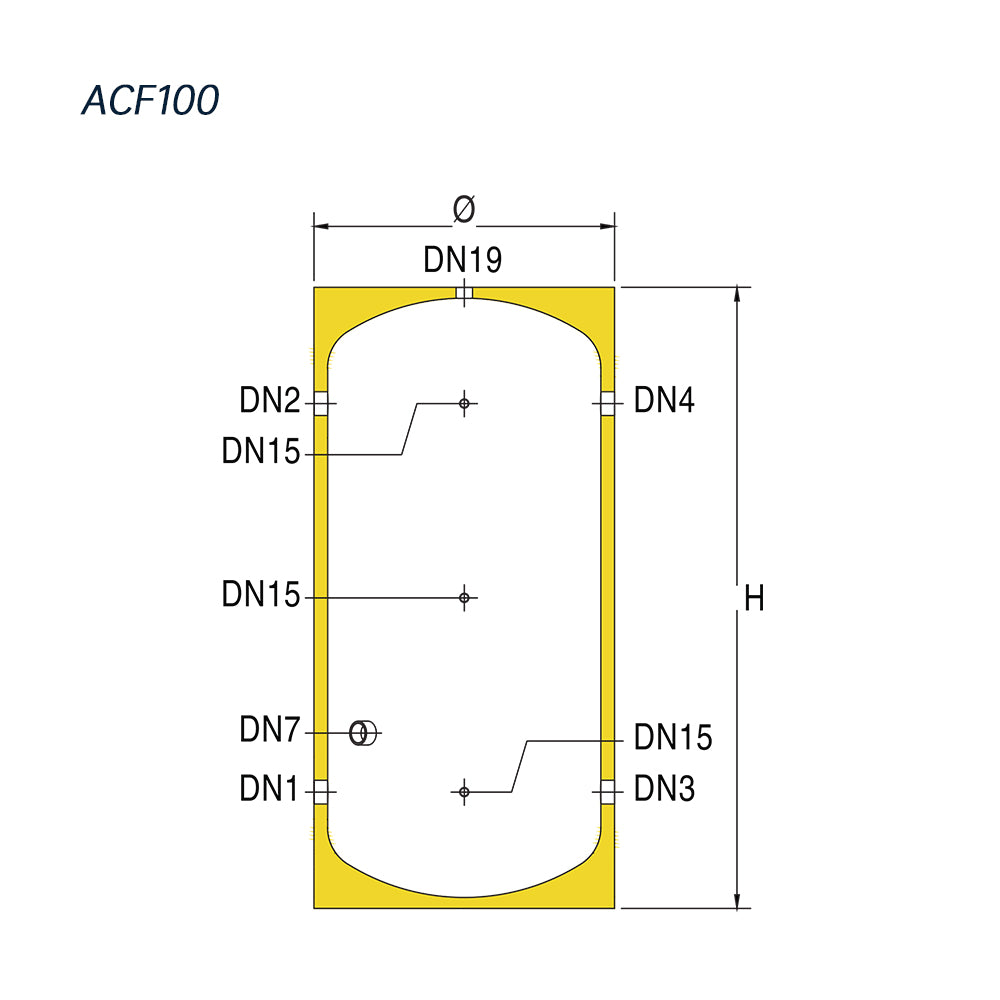

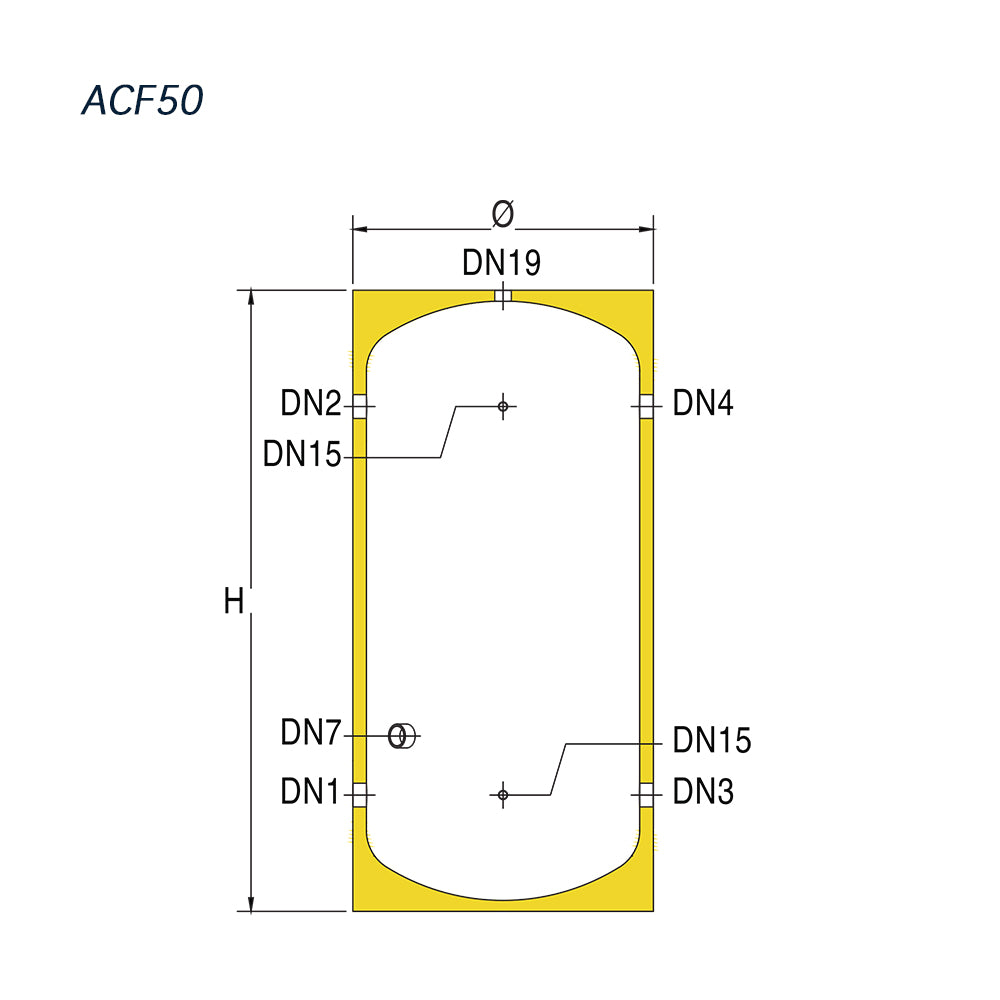

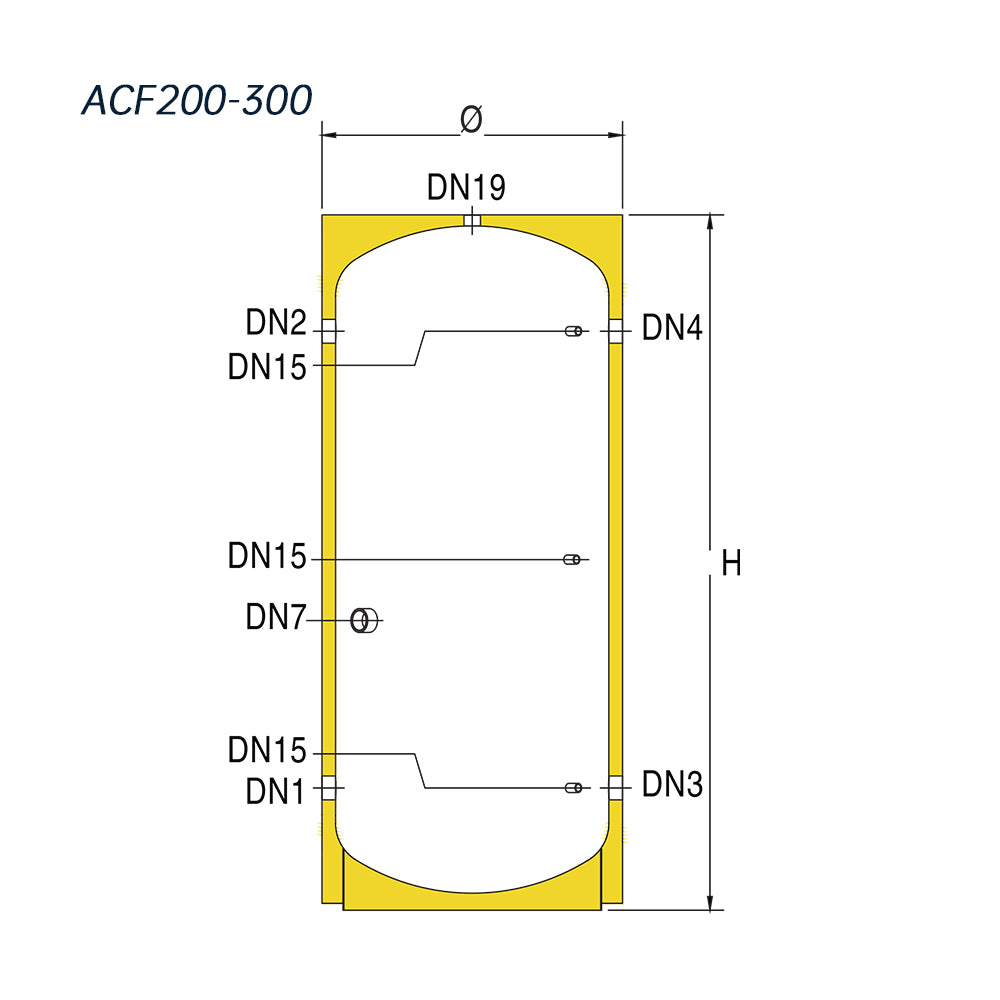

Legend
DN1: Flow to source
DN2: Flow from source
DN3: Flow from heating system
DN4: Flow to heating system
DN7: Predisposition for immersion heater
DN15: Probe
DN15: Probe
DN15: Probe
DN19: Auxiliary connection
DN7: Predisposition for immersion heater
DN11: Drain
