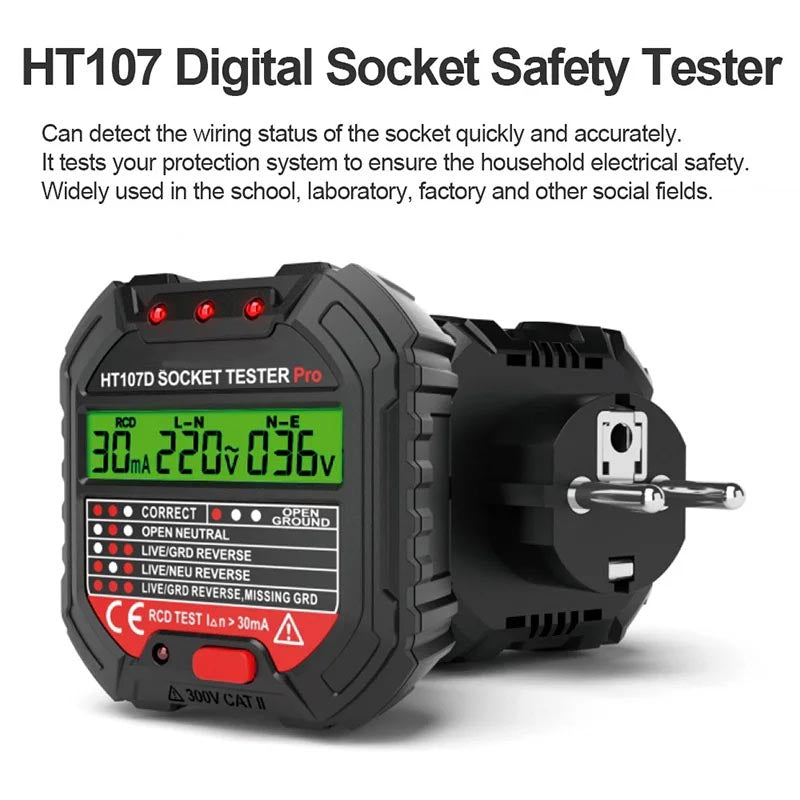

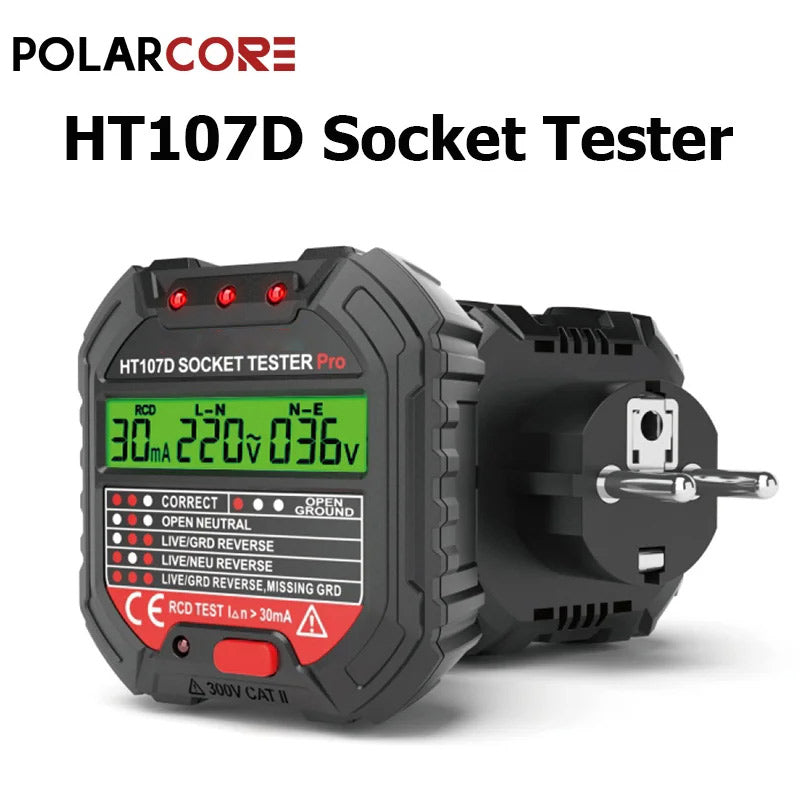

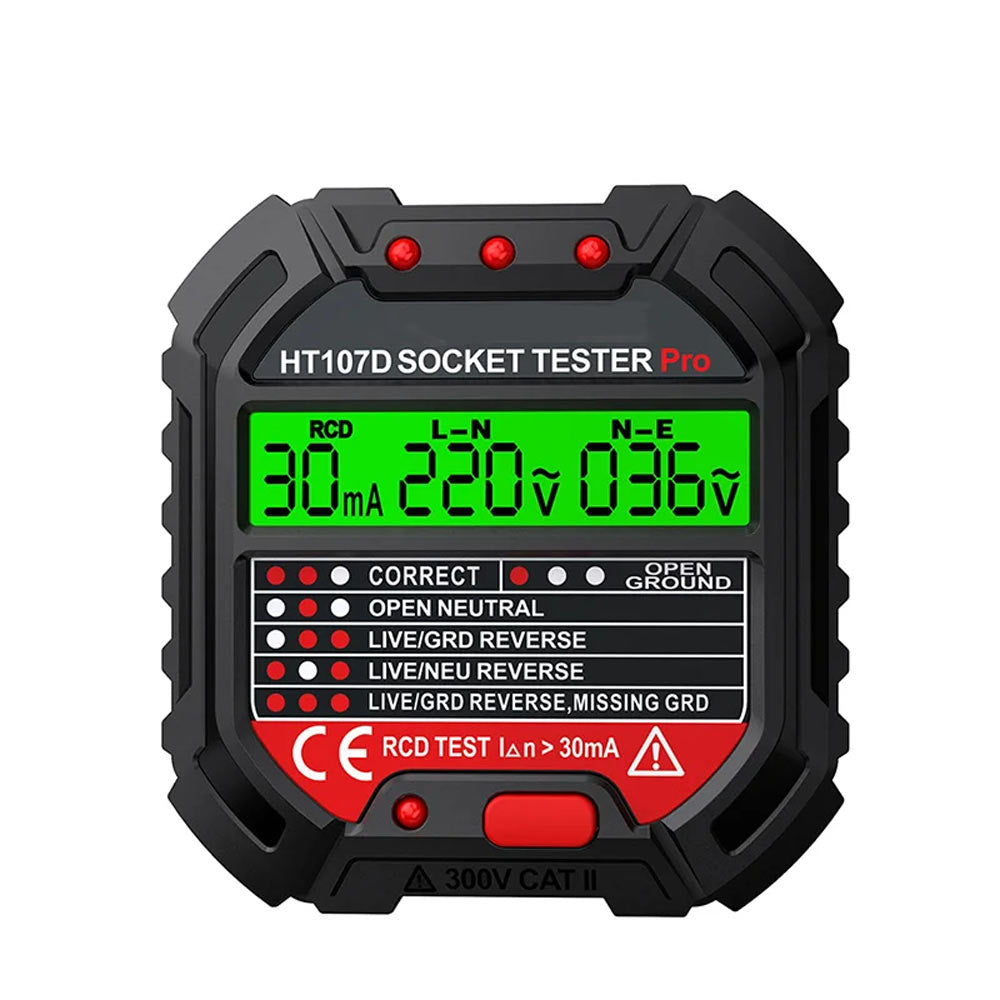

HT107D Socket Tester Digital Plug AC Voltage Detect RCD Test Socket Detector EU Plug Ground Zero Line Plug Polarity Phase Check

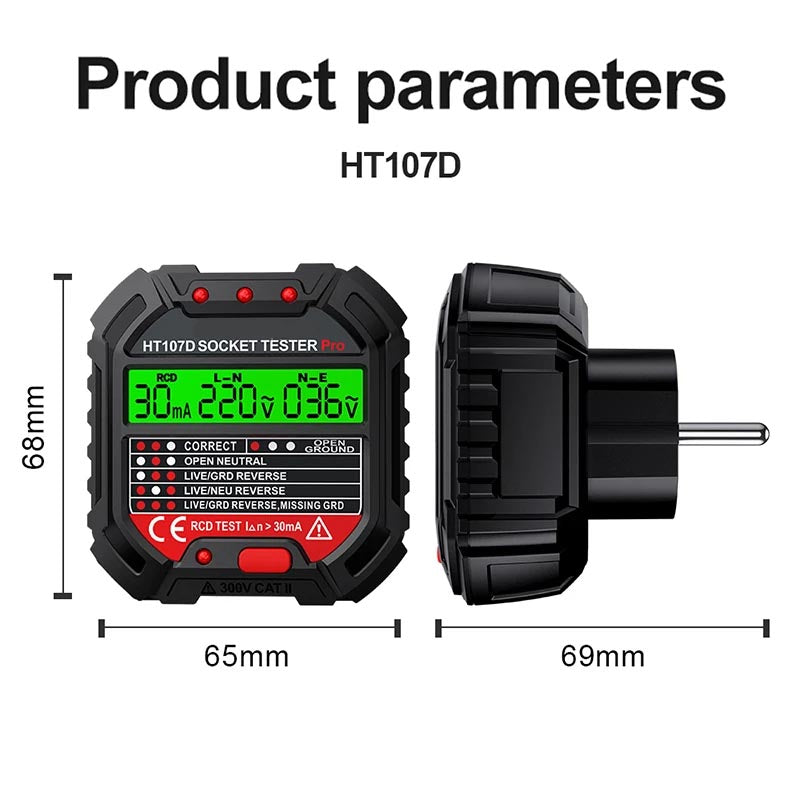

Specification:
◆Model Number: HT107D
◆Display: LCD Display
◆Functions: Circuit Check, AC Voltage Test
◆ Operating Voltage: 90~250V/45~65Hz
◆ Phase Voltage: 90~250V/45~65Hz
◆ Leakage Voltage: 0~99V/45~65Hz
◆Operating Humidity: 20%-75% RH
◆ Accuracy: ± (2.0%+2)
◆ RCD Test: >30mA
◆ RCD Working Voltage: 220V±20V
◆ GFCI Working Voltage: 110V±20V
◆ Working Environment: 0℃ ~ 40℃, 20% ~75%RH
◆ Storage Environment: -10℃ ~ 50℃, 20% ~80%RH
◆Storage Humidity: 20%~80%RH
◆Altitude: less or equal to 2000m
HT107D Socket Tester Digital Plug AC Voltage Detect RCD Test Socket Detector EU Plug Ground Zero Line Plug Polarity Phase Check

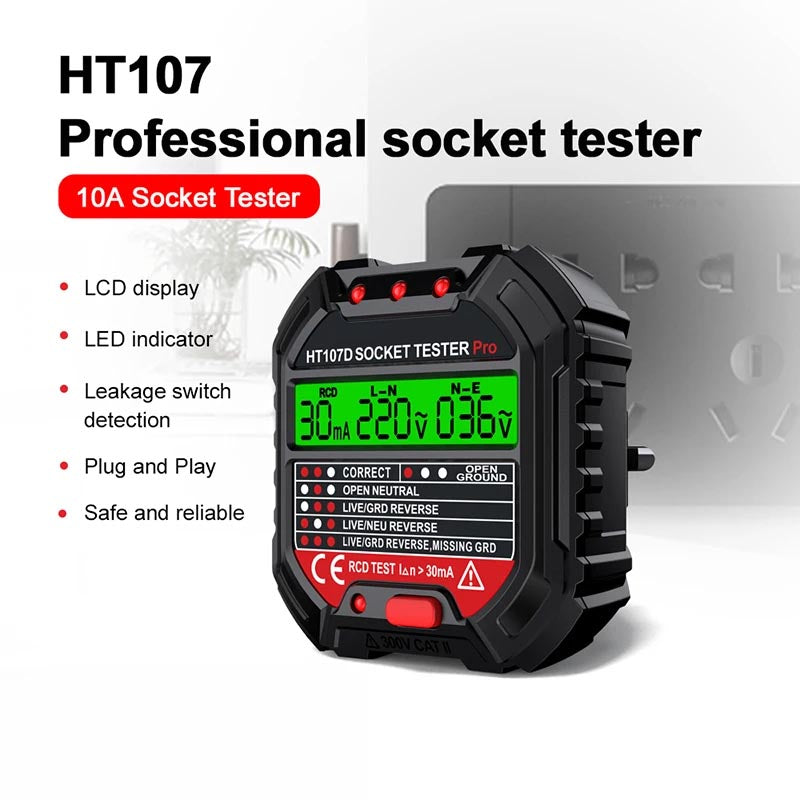

Features:
PORTABLE ELECTRIC SOCKET TESTER --- Advanced socket tester for rapidly detecting whether the socket's wire connection is correct or not. Compact size, lightweight, and convenient to use. With voltage backlight LCD for testing voltage.
PLUG & PLAY --- Designed with RCD/GFCI Test Button, One Click to know the working state of the leakage protector. Perfect for protecting your security against the risk of electric shock.
BRIGHT LED DISPLAY --- Light patterns are well labeled on the back of the device itself. The Red LED indicators can be lit up even in strong sunlight also be used in the dark, making you read them fast.

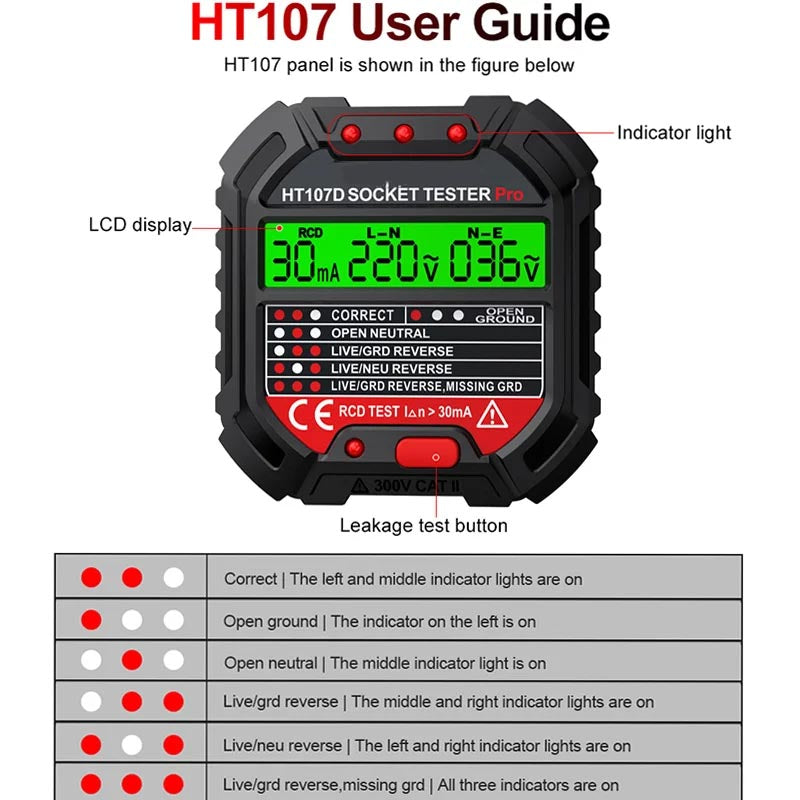

6 LED LIGHT PATTERNS --- With 6 easy-to-read indicators to indicate the state of the socket, easy to judge: Correct, Open Ground, Open Neutral, Live/Neutral Reverse, Live/Ground Reverse, Live/Ground Reverse, Missing Ground.
WIDE APPLICATION --- Widely used for electric maintenance testing, office sockets testing, power strips testing, and wall sockets testing in schools, laboratories, factories, and other social fields. Home improvement acceptance and safety inspection saves you lots of time in testing problems with sockets.

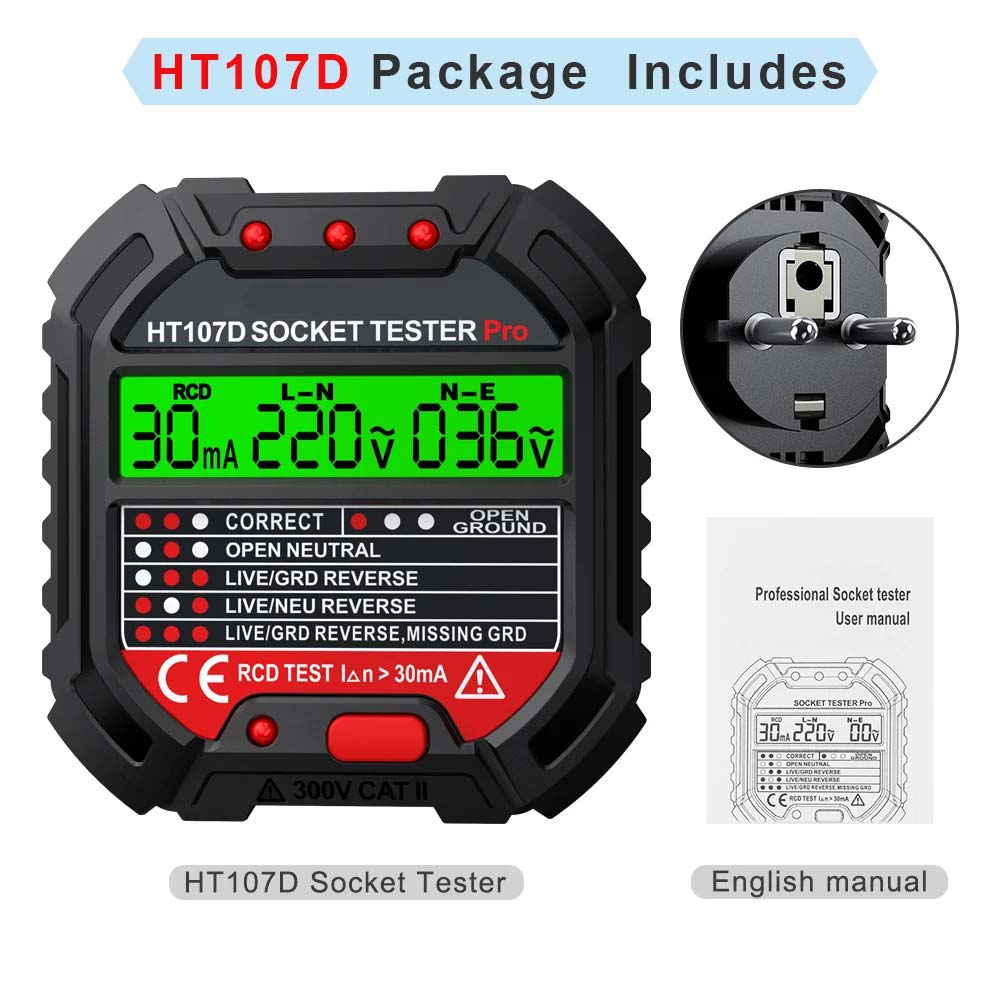

Packing List:
1 * Electric Socket Tester
1 * User Manual
