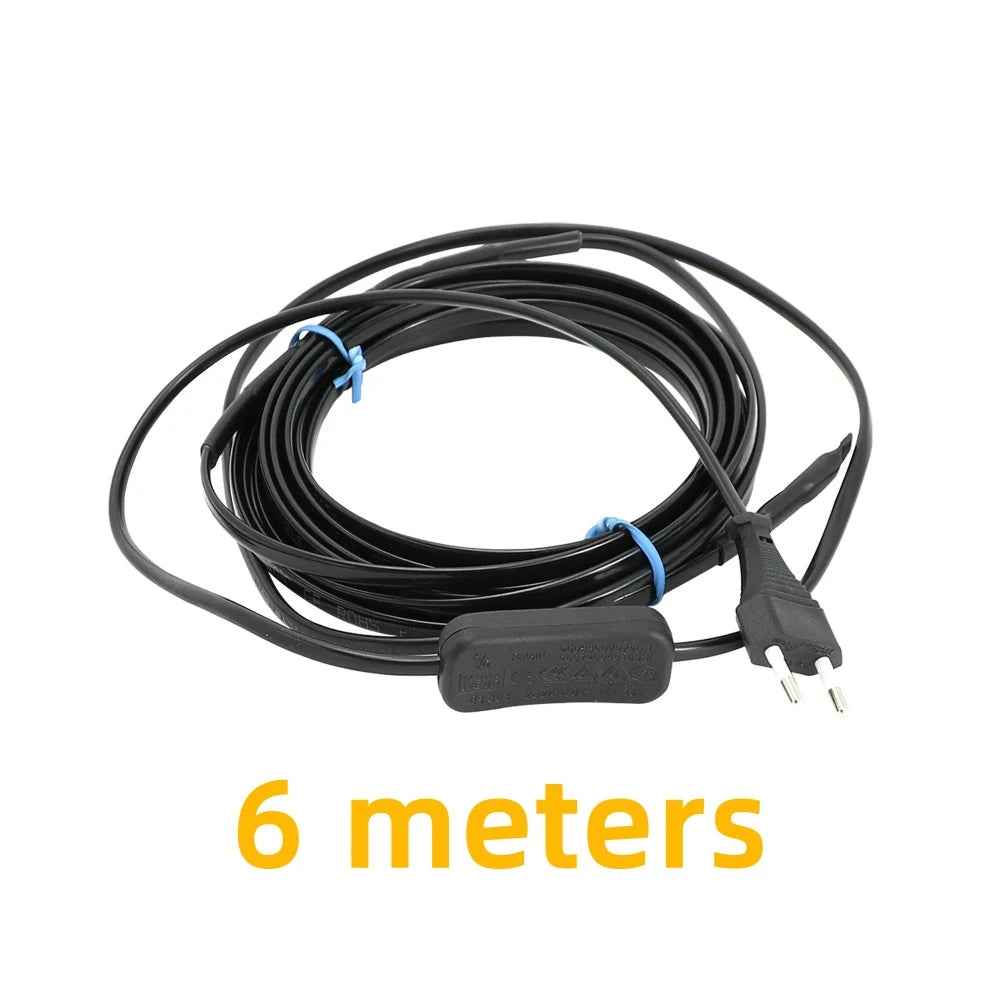

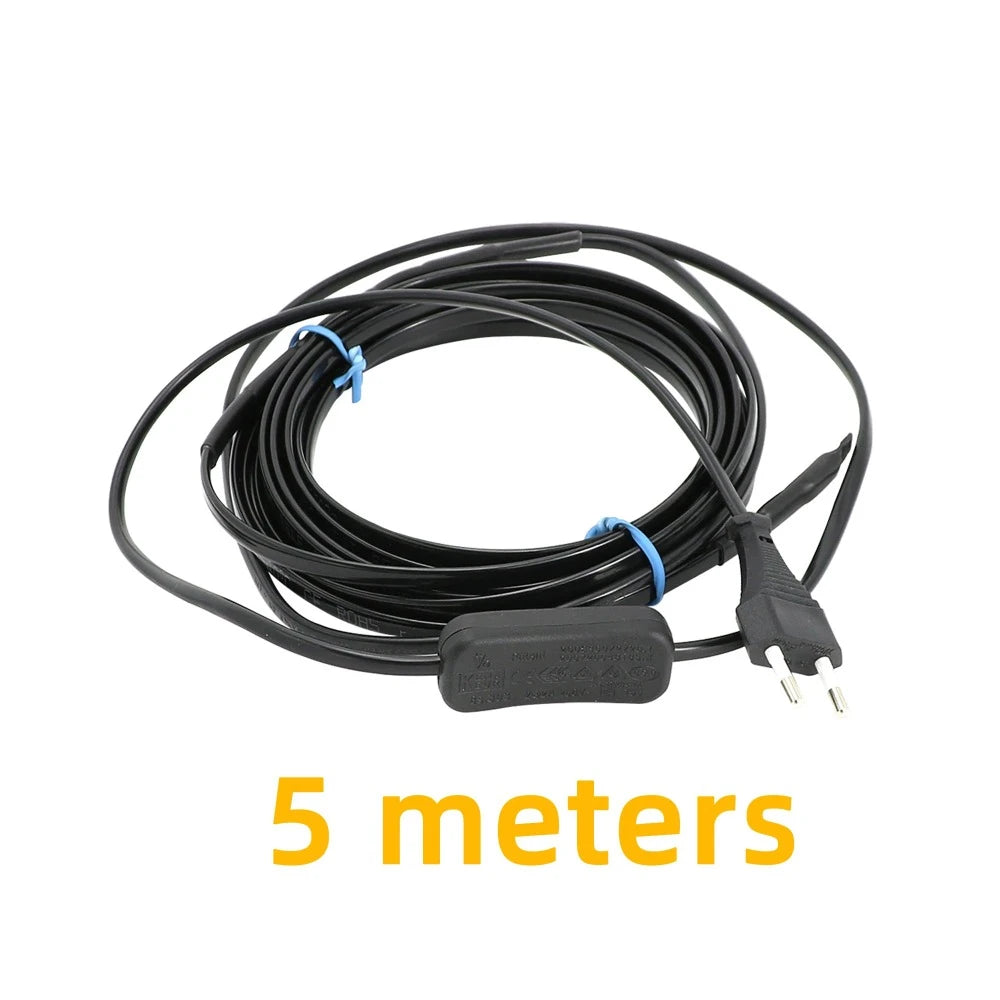

    Self Regulating Heating Cable 20W/m AC220~240V, 50/60Hz With Switch EU Plug for Water pipe Freeze Protection

    €25,57 EUR
    €19,68 EUR
     per
    In stock!
    Color

    Product description

    SPECIFICATIONS
    Material: PEX
    Type: Floor Heating Parts
    Floor Heating Part Type: Floor Heating Cables
    Certification: CE
    Product name:water pipe heating cable/self regulating heat trace cable
    Power: 20w/m @10 Celsius
    Length of power cord: 1.5meter
    Max working temperature: 60Celsius
    Min installation temperature: -40Celsius
    Start-up current: less than 0.6 A/m
    Min. bend radius: @20C:25.4mm   @-30C:35.0mm
    Voltage: AC220~240V, 50/60Hz
    Width: 8.3mm
    Max circuit length: 20m
    Plug: EU plug

    Cable Structure:
    1. Pure copper conductor
    2. PTC heating element
    3. PE insulation

    Package Including:
    1 x DBRK heating cable with EU-plug( Length optional)

    NOTE: this cable is connected and sealed well, you can plug into 220V socket to use directly!!!

    Installation:
    1. Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape.
    2. Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.
    3. Plug into 220~240V. The heat trace system is finished.
