Super Soft 2 Pin Black Red Silicone Cable 28awg 26 24 22 20 18 16 14 12awg 10awg 8awg High Temperature Resistant Copper Wire
"2-pin Silicone wire" describes a cable with two conductors insulated with silicone, suitable for various electrical and electronic applications where flexibility, heat resistance, and durability are important considerations. These wires are commonly used in hobbyist electronics, appliances, automotive applications, and industrial equipment where reliable electrical connections are necessary under varying condition
SPECIFICATIONS
28 26 24 22 20 18 16 14 12 10 8 AWG
Other Specification: 0.08 0.16 0.2 0.3 0.5 0.75 1.27 2 3.4 5.3 8.3 mm²
Copper core diameter: 0.08mm
Characteristic: Very soft

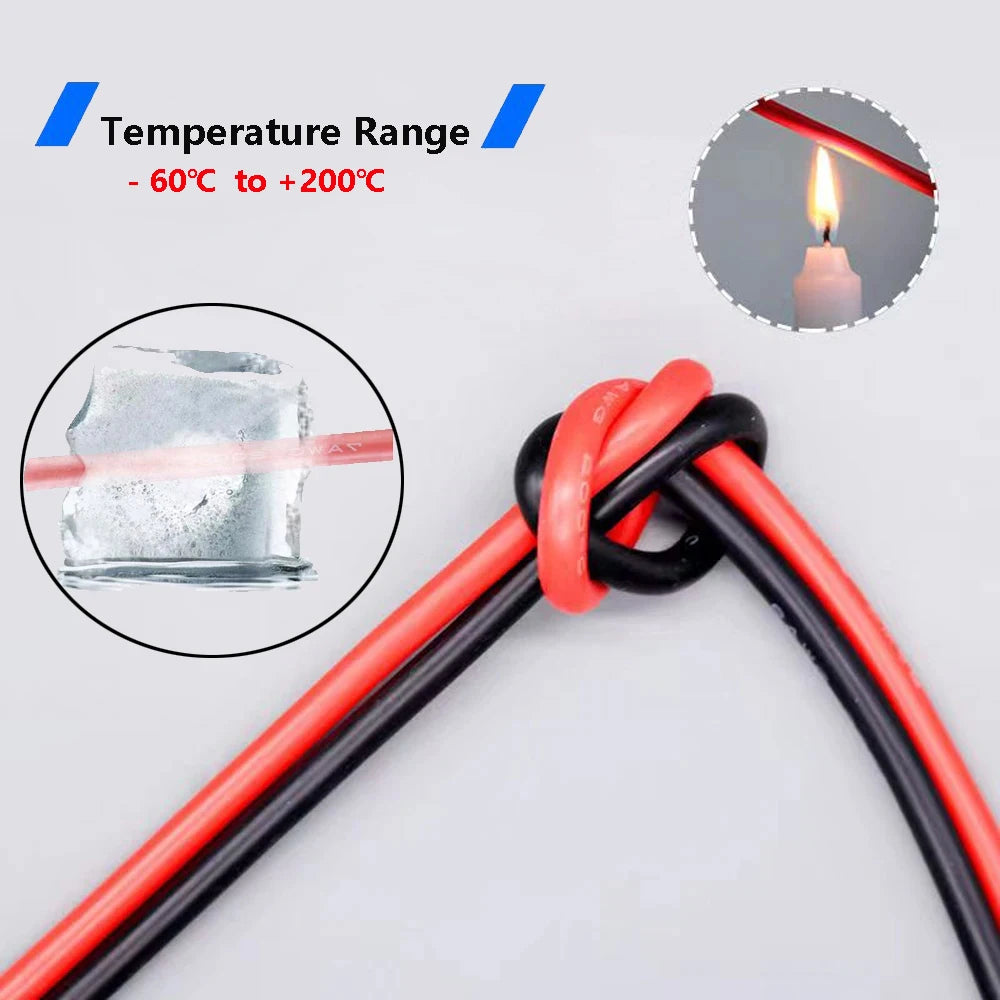

Temperature range: -60℃ ~ 200℃
Application: Lithium battery, New energy vehicle battery, Power battery
Color: Black Red
Other Applications: Inverter, Model aircraft battery, Drone battery
Model Number: 2 pin Silicone wire
Type: Insulated
Conductor Material: Copper
Conductor Type: Stranded
Insulation Material: Rubber
Certification: CE
Certification: RoHS

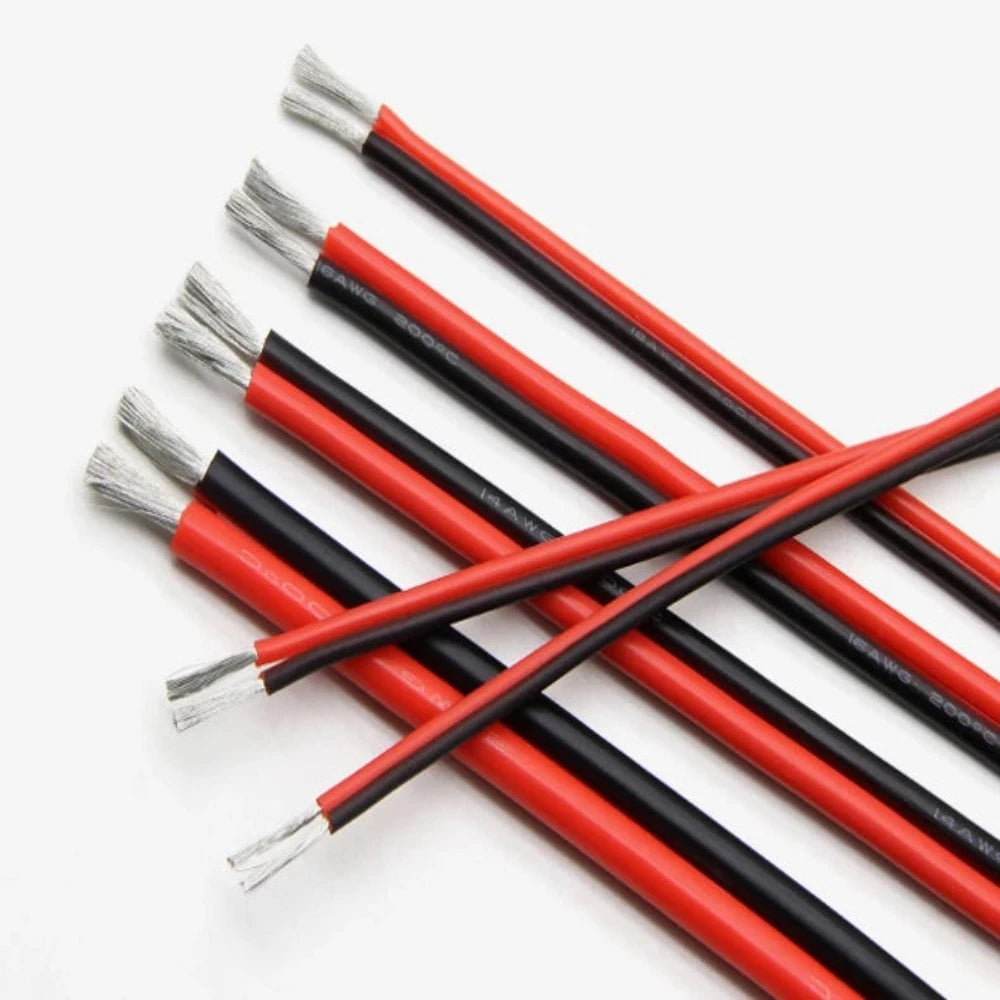

2Pin Soft silicone cable
Insulation material: silicone
Conductor material: tinned copper
Rated voltage:600V
TECHNICAL PARAMETERS
|
Size No. |
Specification |
Cross-sectional area |
Outer |
Safe current |
Maximum current |
Rated |
|
NO./OD |
(MM²) |
(MM) |
(A) |
(A) |
(V) |
|
|
28 AWG |
16/0.08TS*2 |
0.08 |
1.2*2.4 |
0.6 |
1.2 |
600 |
|
26 AWG |
30/0.08TS*2 |
0.15 |
1.5*3 |
1.5 |
3 |
600 |
|
24 AWG |
40/0.08TS*2 |
0.2 |
1.6*3.2 |
2 |
5 |
600 |
|
22 AWG |
60/0.08TS*2 |
0.3 |
1.7*3.4 |
3 |
8 |
600 |
|
20 AWG |
100/0.08TS*2 |
0.5 |
1.8*3.6 |
5 |
13 |
600 |
|
18 AWG |
150/0.08TS*2 |
0.75 |
2.3*4.6 |
8 |
22 |
600 |
|
16 AWG |
252/0.08TS*2 |
1.26 |
3*6 |
13 |
30 |
600 |
|
14AWG |
400/0.08TS*2 |
2 |
3.5*7 |
20 |
50 |
600 |
|
12AWG |
680/0.08TS*2 |
3.4 |
4.5*9 |
34 |
70 |
600 |
|
10AWG |
1050/0.08TS*2 |
5.3 |
5.5*11 |
50 |
100 |
600 |
|
8AWG |
1650/0.08TS*2 |
8.3 |
6.5*13 |
70 |
160 |
600 |
